1080P 4K FULL HD Industrial Microscope C-Mount Digital Camera Via Type-C Measurement For PCB Soldering Phone Repair, Do Brasil

R$ 1.999,00 BRL

~~R$ 1.055,15 BRL~~ R$ 1.999,00 BRL

Promoción Especial Esgotado

Frete calculado no checkout.

Quantidade

SPECIFICATIONS

Battery Included: No

Brand Name: KUAIQU

Certification: CE,FCC,RoHS

Drawtube: Monocular

Features: High Definition,Digital

Hign-concerned Chemical: None

Magnification Ratio: 500X & Under

Material: Metal

Origin: Mainland China

Theory: Video Microscope

Note

O último lote de estoque chegou, você pode ver a partir deste gráfico quais produtos estão em estoque

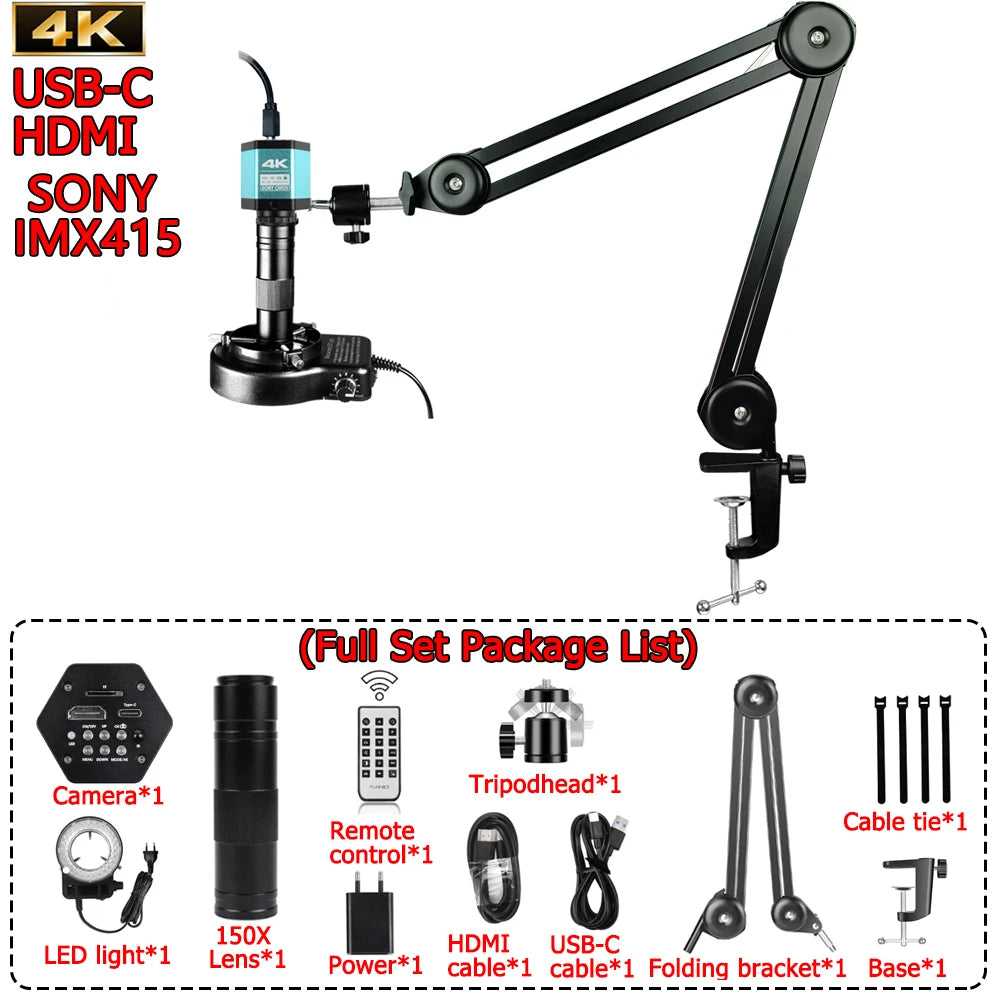

XHU4006 Connectable software SONY IMX415 Sensor

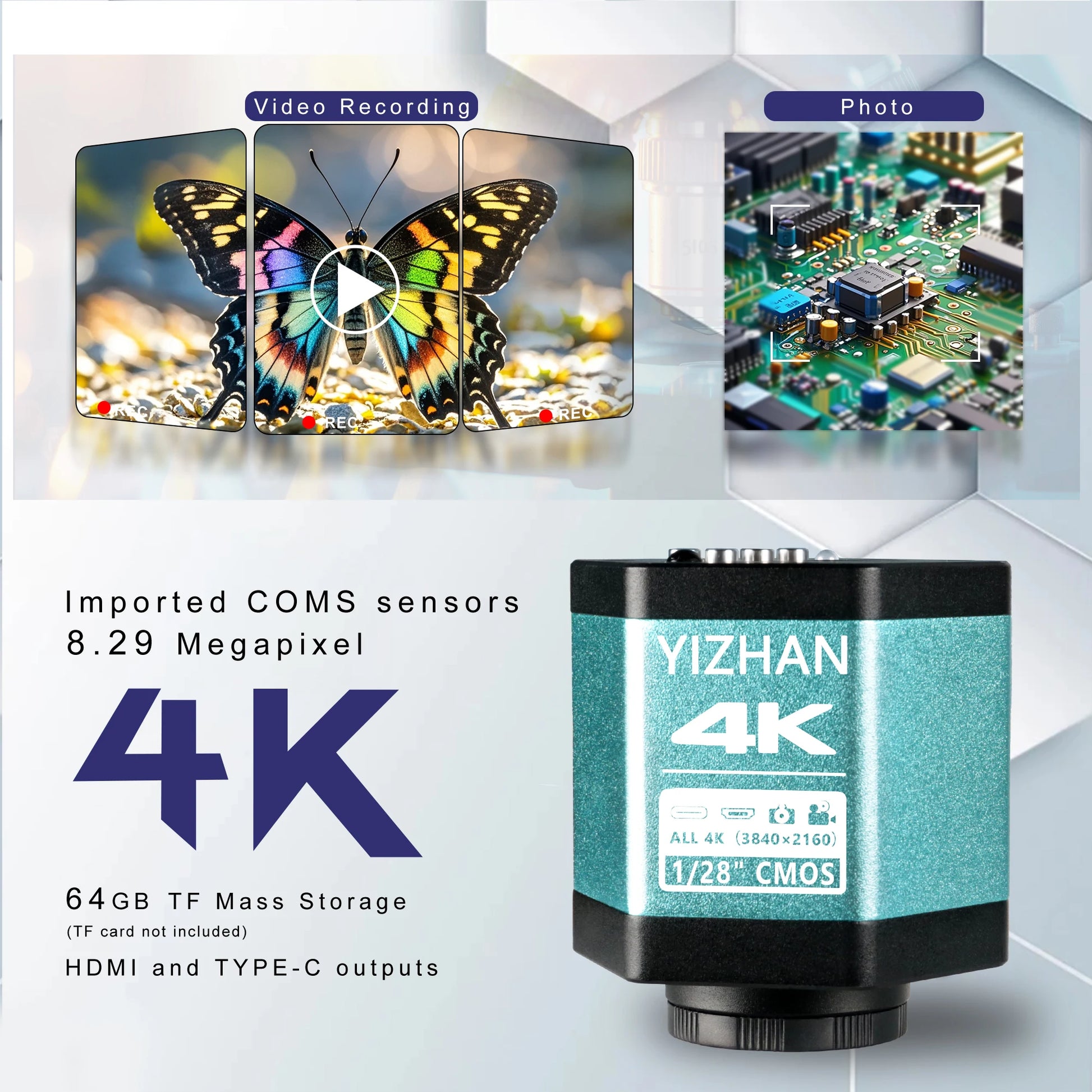

◆ Using 8.29 million pixel Sony CMOS image sensor;
◆ Using 1/2.8 inch image sensors;

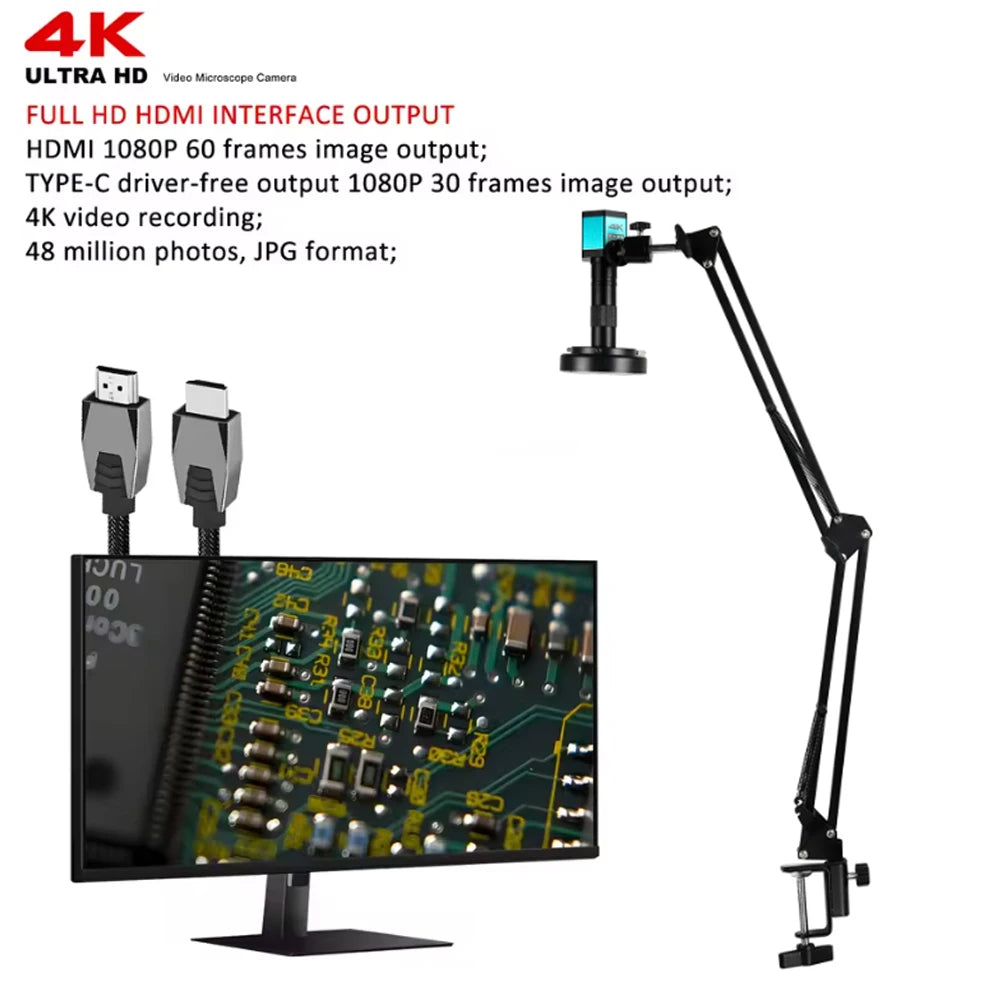

◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 48 million photos, JPG format, picture size 8000x6000;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support Chinese, traditional Chinese and English menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

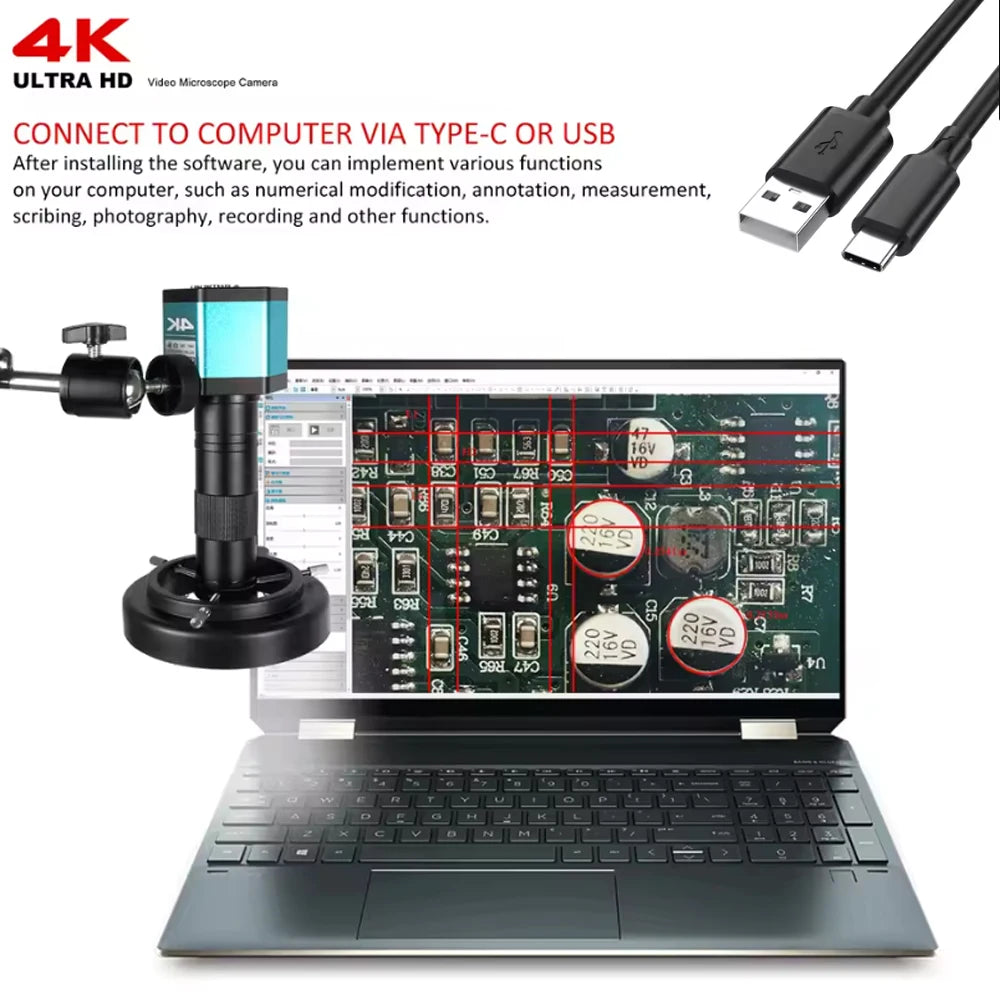

Type-c Connects to PC Photo \ Vide \ Measurement Data Analysis

After installing the ImageView program on your computer and connecting it to your computer through your Type-c camera
It can achieve image capture, video recording and high-precision multi-type measurement
The data is stored in the SD card and can be named twice

One Click HD Photo/Video

Multi-Window Preview of Captured Images

Take multiple pictures, generate a separate editing window,
Multiple images can be processed and compared simultaneously in batches

Can switch to Portuguese

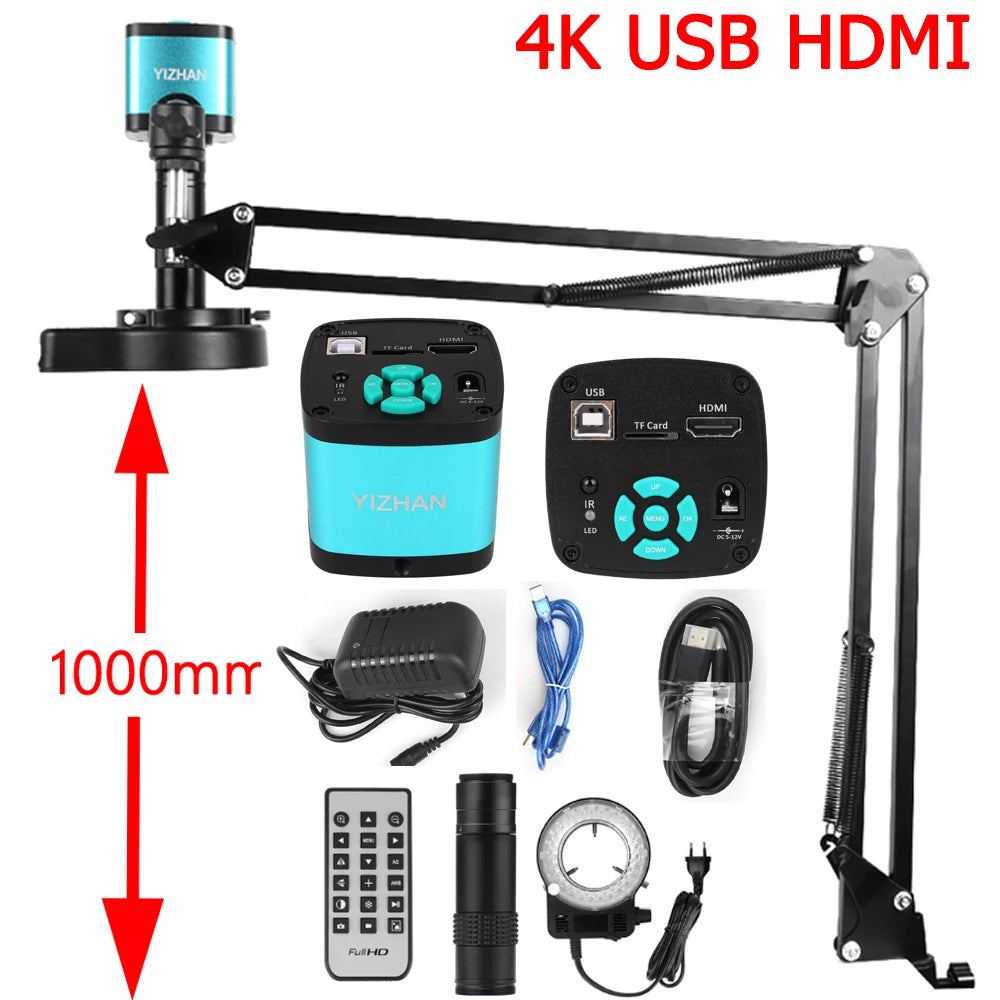

XHU4003 Connectable software SONY IMX415 Sensor

Video microscopes are easy to operate and widely used.

1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

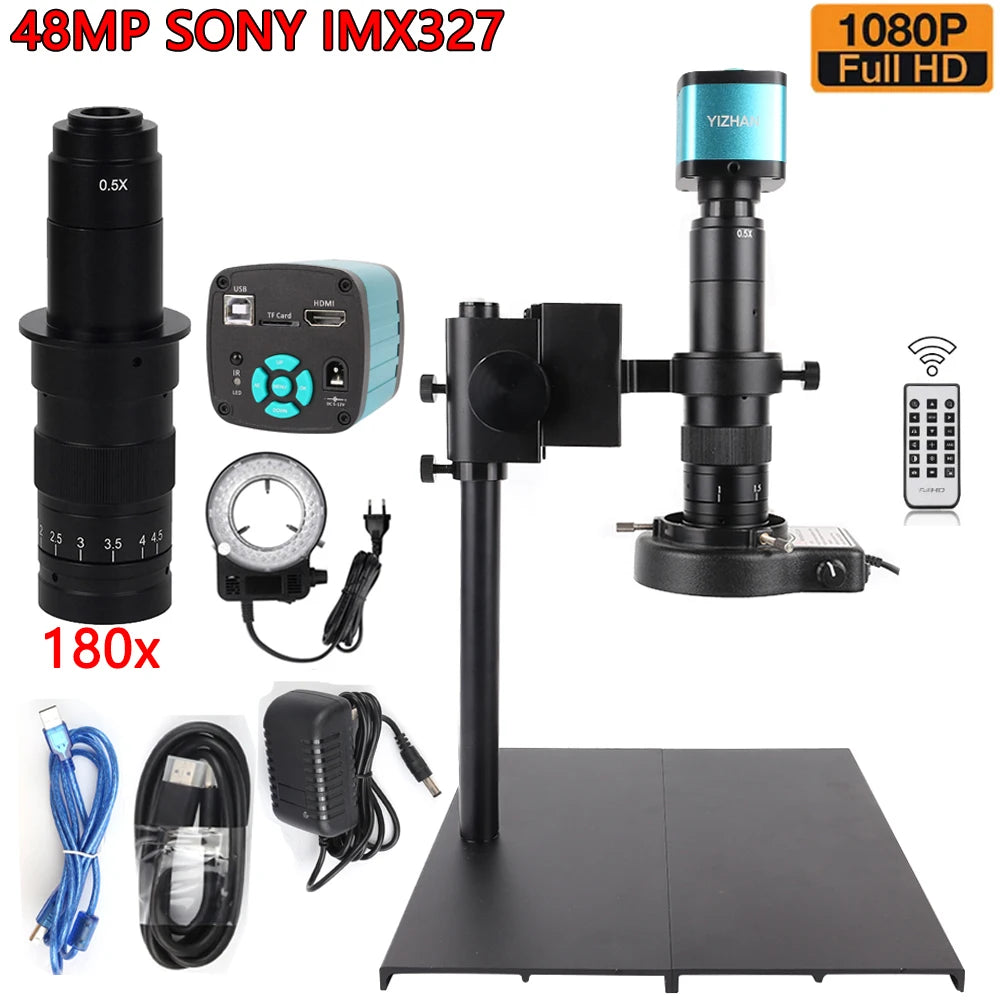

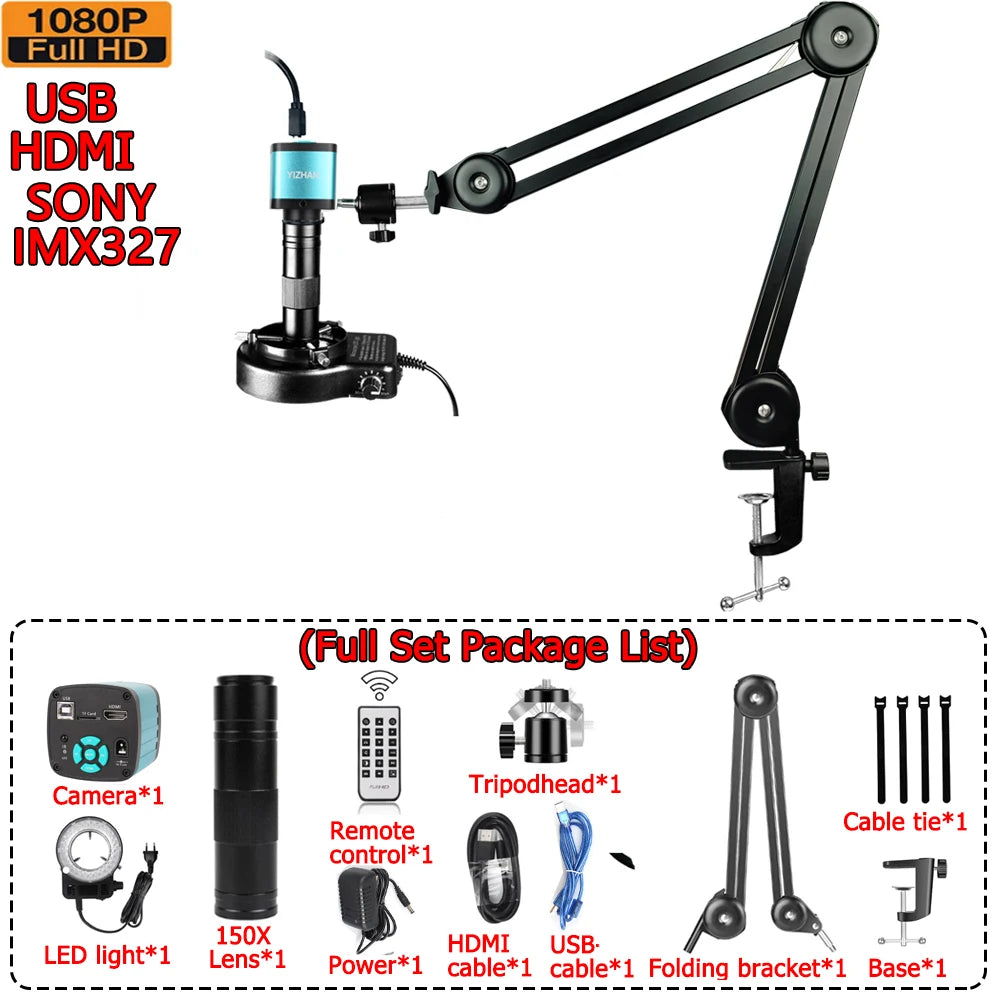

XHU4002 Connectable software SONY IMX327 Sensor

Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel SONY sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

Remote Control

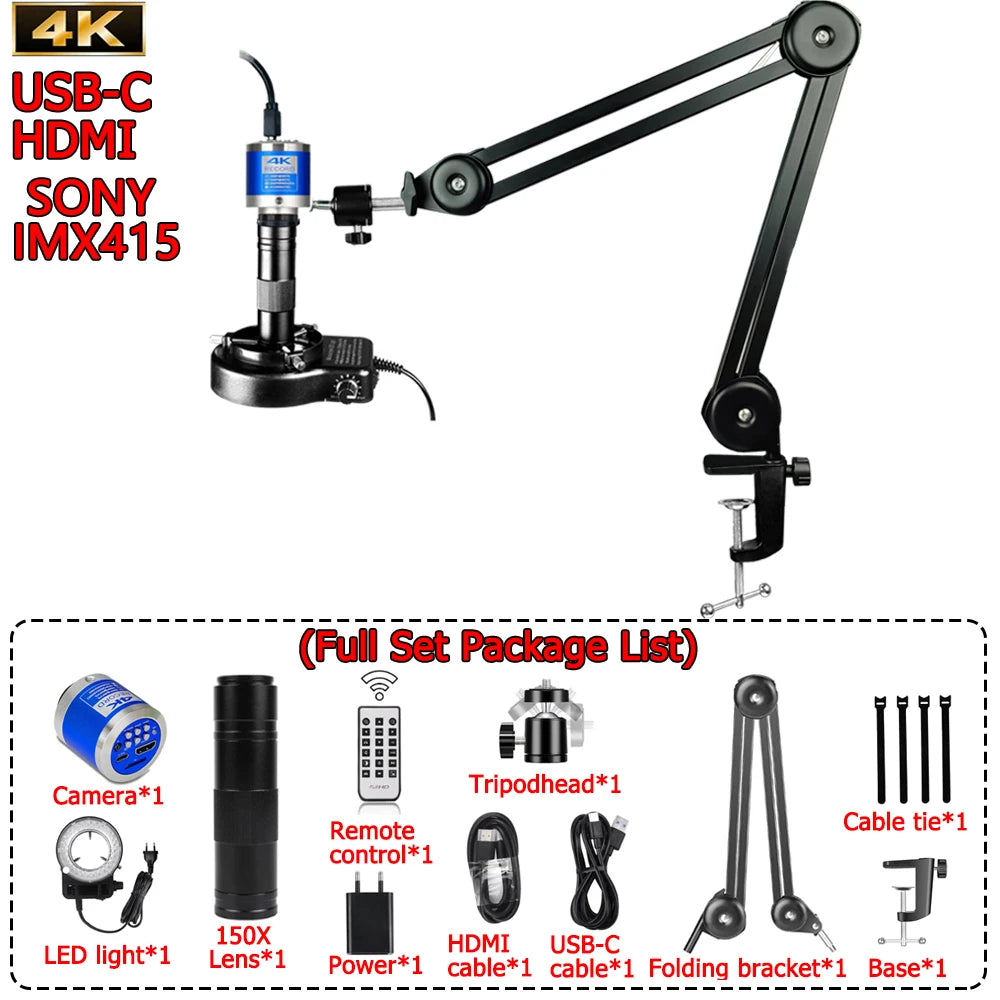

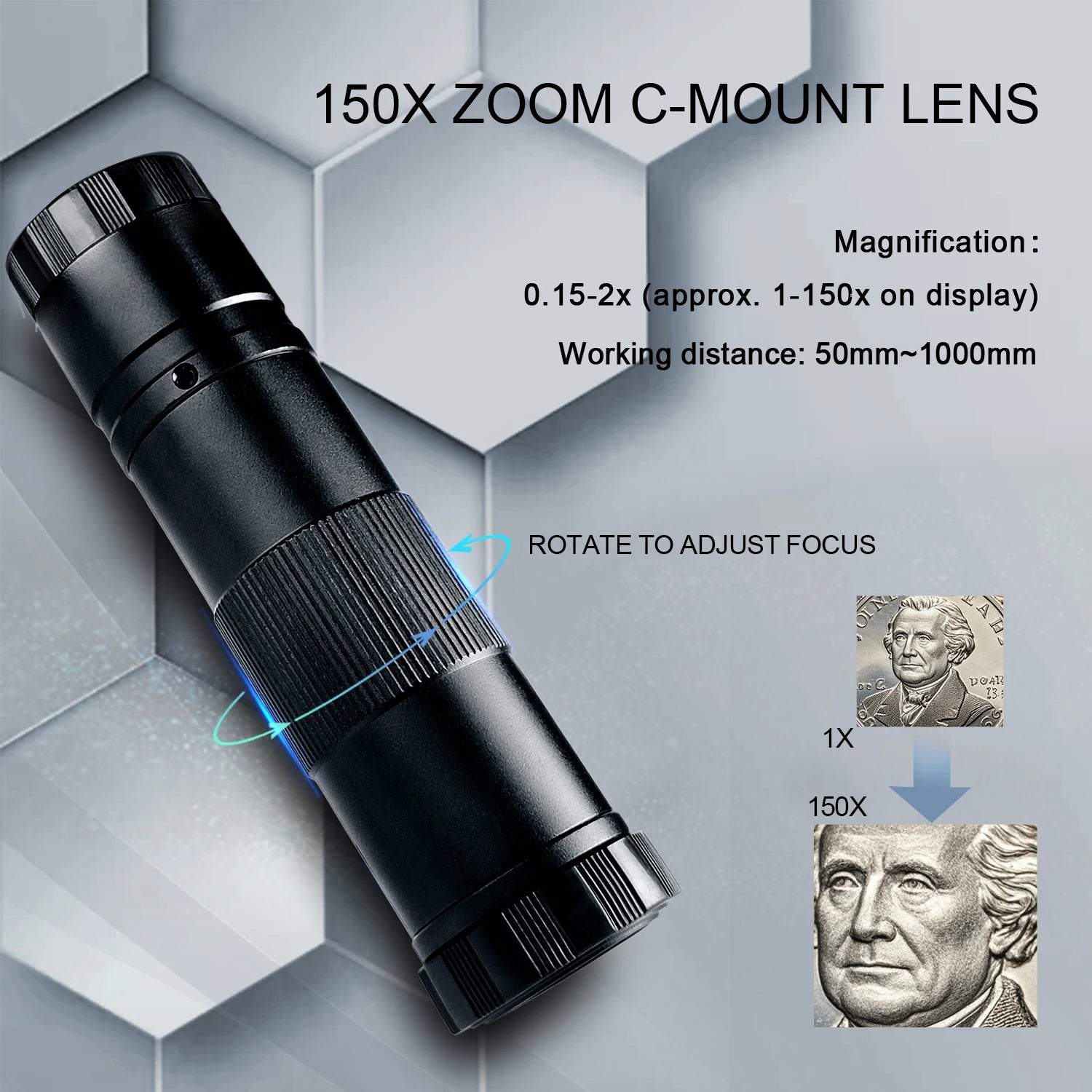

1X-150X zoom C-mount lens：

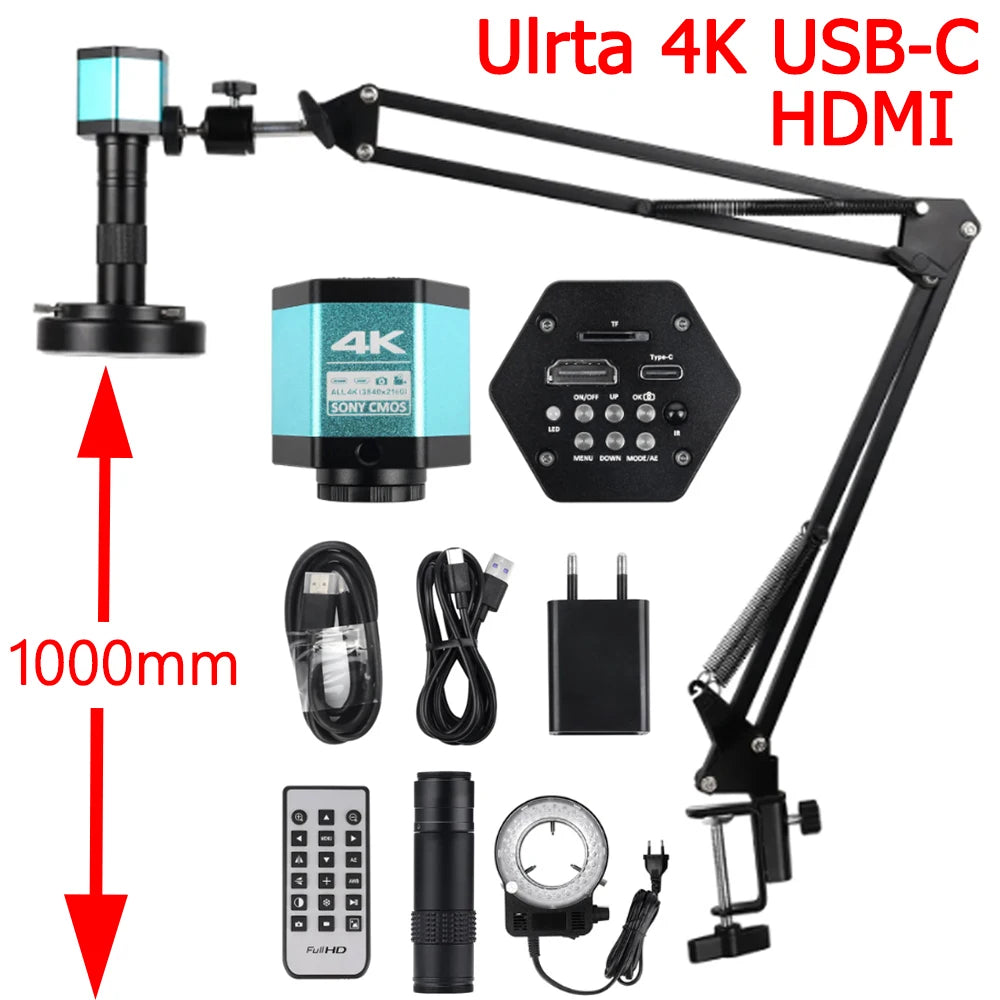

Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 30mm (diameter) * 99mm (length)
Weight: 195g

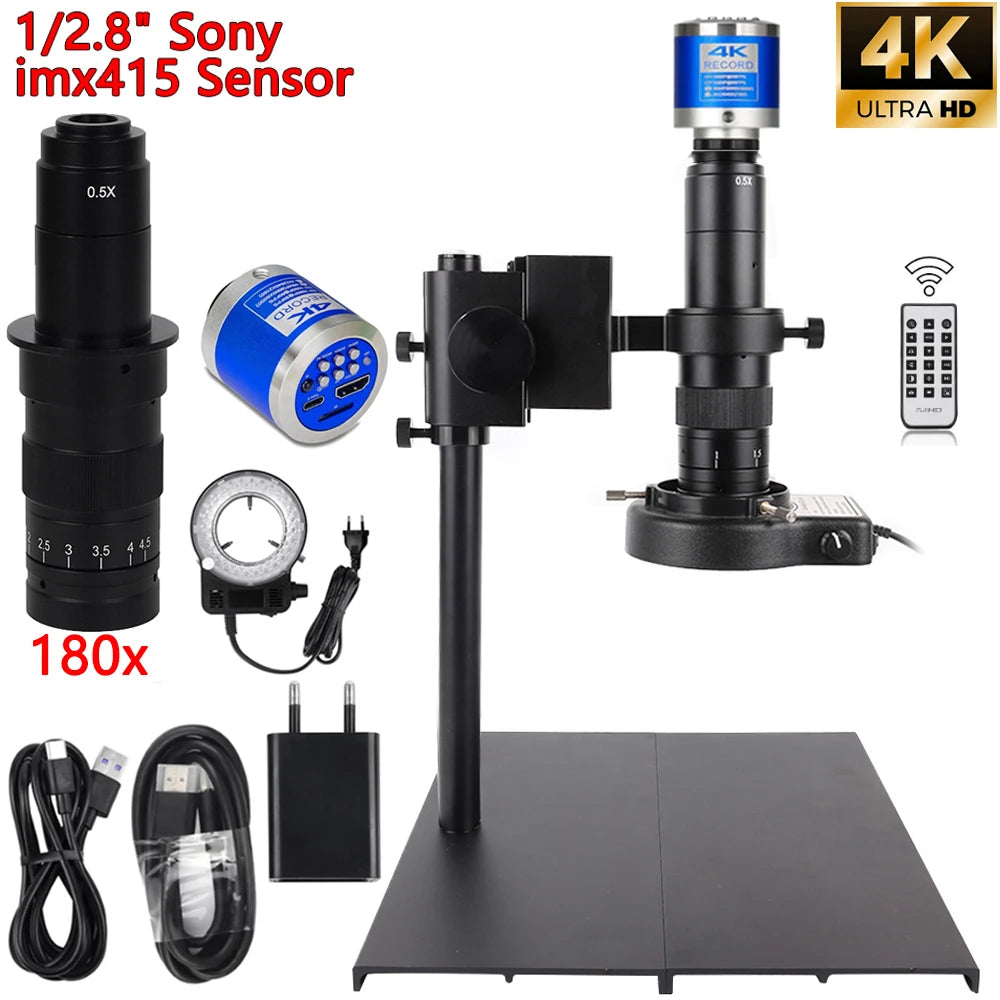

1X-180X Zoom C-mount Lens:

Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 1 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g
